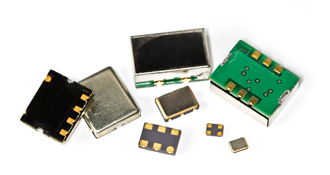

Klove Electronics Voltage Controlled Crystal Oscillators (VCXOs) are produced with CMOS, LVPECL, LVDS, HCSL or True Sine Wave outputs in a wide variety of packages and specification characteristics.

Picture Product Features Dimensions (mm) Frequency Range
        sx2cv SX2CV Ultra-miniature package 2.5 x 2.0 x 0.9 mm
1.25 MHz-50.0 MHz
       sx3cv SX3CV Low current consumption 3.2 x 2.5 x 1.2 mm 1.0 – 54.0 MHz
 sx3cqv SX3CQV Low jitter 3.2 x 2.5 x 1.1 mm 50 – 245 MHz
 sx3cpv SX3CPV next-day-delivery 3.2 x 2.5 x 1.1 mm 10 – 245 MHz
 sx3cqpv SX3CQPV
2 frequencies switchable NEW
3.2 x 2.5 x 1.1 mm 10 – 250 MHz
 sx5cv SX5CV Tristate functions 5.0 x 3.2 x 1.3 mm 1.0 – 54.0 MHz
sx5cqv SX5CQV Low jitter 5.0 x 3.2 x 1.3 mm 50 – 245 MHz
 sx5cpv SX5CPV next-day-delivery 5.0 x 3.2 x 1.3 mm 10 – 245 MHz
 sx5cqpv SX5CQPV
2 frequencies switchable NEW
5.0 x 3.2 x 1.3 mm 10 – 250 MHz
 sx7cpv SX7CV Tristate functions 7.0 x 5.0 x 1.8 mm 1.0 – 75.0 MHz
 sx7cqv SX7CQV Low Jitter 7.0 x 5.0 x 1.8 mm 50 – 245 MHz
 sx7cpv SX7CPV next-day-delivery 7.0 x 5.0 x 1.8 mm 10 – 245 MHz
 sx7cqpv SX7CQPV
2 frequencies switchable NEW
7.0 x 5.0 x 1.8 mm 10 – 250 MHz
 sp2cv SP2CV Low Phase Noise 14.3 x 8.7 x 5.5 mm 1.0 – 800 MHz
 dlhcv DLHCV Large frequency pulling 12.7 x 12.7 x 5.08 mm 1.0 – 125.0 MHz
 dlcv DLCV Large frequency pulling 20.7 x 13.1 x 5.08 mm 1.0 – 125.0 MHz
Picture Product Features Dimensions (mm) Frequency Range
 sx3eqv SX3EQV Good phase noise 3.2 x 2.5 x 1.1 mm 10 – 1450 MHz
 sx3epv SX3EPV next-day-delivery 3.2 x 2.5 x 1.1 mm 10 – 1450 MHz
 sx3eqpv SX3EQPV
2 frequencies switchable NEW
3.2 x 2.5 x 1.1 mm 10 – 1500 MHz
 sx5eqv SX5EQV Good phase noise 5.0 x 3.2 x 1.3 mm 10 – 1450 MHz
 sx5epv SX5EPV next-day-delivery 5.0 x 3.2 x 1.3 mm 10 – 1450 MHz
 sx5eqpv SX5EQPV
2 frequencies switchable NEW
5.0 x 3.2 x 1.3 mm 10 – 1500 MHz
 sx5euv SX5EUV Ultra-low Jitter 5.0 x 3.2 x 1.3 mm 15 – 2100 MHz
 sx7eqv SX7EQV Good phase noise 7.0 x 5.0 x 1.8 mm 10 – 1450 MHz
 sx7epv SX7EPV next-day-delivery 7.0 x 5.0 x 1.8 mm 10 – 1450 MHz
 sx7eqpv SX7EQPV
2 frequencies switchable NEW
7.0 x 5.0 x 1.8 mm 10 – 1500 MHz
 sx7euv SX7EUV Ultra-low Jitter 7.0 x 5.0 x 1.8 mm 15 – 2100 MHz
 sp2ev SP2EV Superior Phase Noise 14.3 x 8.7 x 5.5 mm 0.75 – 800 MHz
Picture Product Features Dimensions (mm) Frequency Range
 sx3lqv SX3LQV Good Phase Noise 3.2 x 2.5 x 1.1 mm 10 – 1450 MHz
 sx3lpv SX3LPV next-day-delivery 3.2 x 2.5 x 1.1 mm 10 – 1450 MHz
 sx3lpv SX3LQPV
2 frequencies switchable NEW
3.2 x 2.5 x 1.1 mm 10 – 1500 MHz
 sx5lqv SX5LQV Good Phase Noise 5.0 x 3.2 x 1.3 mm 10 – 1450 MHz
 sx5lpv SX5LPV next-day-delivery 5.0 x 3.2 x 1.3 mm 10 – 1450 MHz
 sx5lqpv SX5LQPV 2 frequencies switchable NEW 5.0 x 3.2 x 1.3 mm 10 – 1500 MHz
 sx5luv SX5LUV Ultra-low jitter 5.0 x 3.2 x 1.3 mm 15 – 2100 MHz
 sx7lqv SX7LQV Good Phase Noise 7.0 x 5.0 x 1.8 mm 10 – 1450 MHz
 sx7lpv SX7LPV next-day-delivery 7.0 x 5.0 x 1.8 mm 10 – 1450 MHz
 sx7lqpv SX7LQPV 2 frequencies switchable NEW 7.0 x 5.0 x 1.8 mm 10 – 1500 MHz
 sx7luv SX7LUV Ultra-low jitter 7.0 x 5.0 x 1.8 mm 15 – 2100 MHz
 sp2lv SP2LV Superior Phase Noise 14.3 x 8.7 x 5.5 mm 0.75 – 800 MHz
Picture Product Features Dimensions (mm) Frequency Range
 sx5huv SX5HUV Ultra-Low jitter 5.0 x 3.2 x 1.3 mm 15 – 700 MHz
 sx7huv SX7HUV Ultra-Low jitter 7.0 x 5.0 x 1.8 mm 15 – 700 MHz
 sp2hv SP2HV Excellent Phase Noise 14.3 x 8.7 x 5.5 mm 25 – 200 MHz
Picture Product Features Dimensions (mm) Frequency Range
 dlsv DLSV High Purity 20.4 x 12.9 x 5.08 mm 10.0 – 800 MHz
